Vallfirest Firefighting UTV Skid Unit, 50 Gallon

Write a Review
SKU:
VFT-DVS0820-BH1A0
Shipping:
$450.00 (Fixed Shipping Cost)
SKU:
VFT-DVS0820-BH1A0
$6,299.95
Vallfirest Firefighting UTV Skid Unit, 50 Gallon

Elevate your firefighting capabilities with the Vallfirest Firefighting UTV 50-gallon UTV Skid Unit, designed for maximum efficiency and reliability.

Featuring a robust welded copolymer tank with internal baffles, these units are built to withstand demanding conditions. Equipped with a powerful 1-stage centrifugal pump, they deliver a flow rate of 71.32 gallons per minute and a maximum pressure of 100 psi.

Tank:
50 Gallon – Polypropylene Welded

High-Performance Pump:
BH1 - Honda GXH50 - Centrifugal | 2.1HP | 100 PSI | 71.32 GPM | Gasoline

Hose Reel:
75" GHT - Low Profile - Manual - Rubber hose

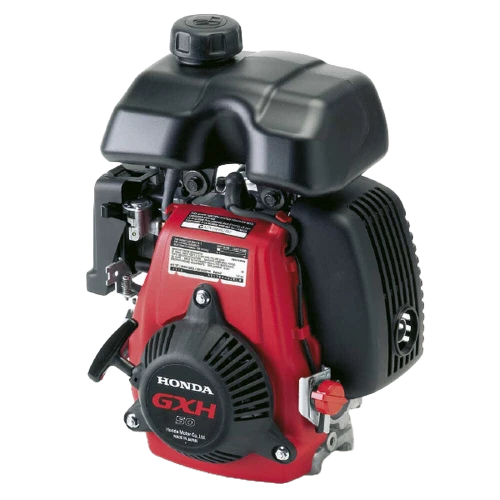

Engine:
Model: Honda GXH50, 4 stroke horizontal shaft
Maximum Power: 2.1 HP (1.6 kW) / 7000 rpm
Net Torque: 2.7 Nm (0.28 kgfm) / 4500 rpm
Starting System: Manual
Pump:
Type: vft 1 stage centrifugal pump
Intake: 1.5 " NPSH
Discharge: 1.5" NPSH
Maximum output: 71.32Gal/min
Maximum pressure: 100 PSI

Water tank
Polyethylene tanks make the entire skid unit lighter. Vallfirest skid units with a polyethylene tank have an
optimized design that provides a low center of gravity under the skid unit for greater vehicle stability.

Features:
Made of welded polyethylene panels
2 longitudinal baffles to prevent water from moving to the side to ensure vehicle stability
1-1/2” filling port on the top with couplings to fill the tank from a hydrant or exterior pressurized water source
5" vent tower on the top
A water level indicator over connecting ducts
A convenietly located 3/4” drain to empty the tank
Pump return connection to fill the tank by drafting
The tank connects to the vehicle with lateral mounting points
Black natural color

Hose Reel
Made of anti-corrosive material with a manual starting crank and lock system.

TECHNICAL DATA
· Capacity:
- 75 feet 3/4" GHT booster hose
- 50 feet 1" lightweight textile booster hose

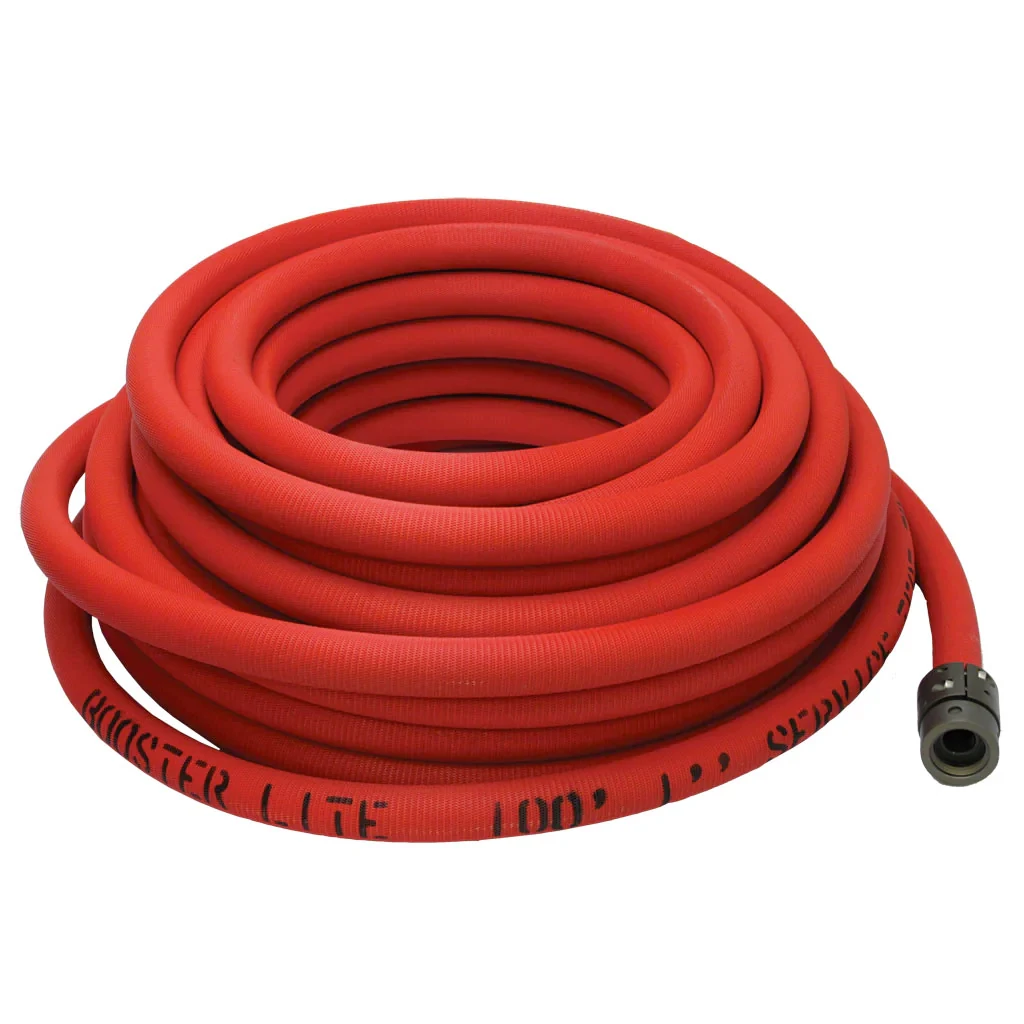

Hose
GHT booster hose
Flexible EPDM synthetic rubber reinforced hose with spiral synthetic yarn for
extra strenght. Abrasion, crack and kink resistant with non corrosion brass
couplings.

TECHNICAL DATA
· Working Pressure: 200 PSI // Brust Pressure: 300 PSI
· Standard length: 75 feet
· Internal diameter: 3/4"


Suction Hose
Clear flexible PVC spiral suction hose with rigid PVC spiral and smooth
inner surface. Includes vft foot valve.

TECHNICAL DATA
· Length: 8 feet
· Suction hose diameter: DN 1.5”
