Kussmaul Auto Charge Deluxe Watertight Status Center

Kussmaul Auto Charge Deluxe Watertight Status Center

The Kussmaul Auto Charge Deluxe Watertight Status Center can be put conveniently placed on a vehicle.

Description:

• Optional remote indicator for Auto Charge 1200, Auto Charge 1200 Remote, Auto Charge 40/20, Pump Plus 1200, and LPC 40
• Rugged Water Tight Enclosure
• LED's Indicate Status Of Battery Condition
• Digital Display shows battery voltage and current from the charger
• Water tight Deutsch connectors
• LED Flashes when low or high voltage is detected
• 3 year warranty

Bezel Options: Available colors are Red, Yellow, White, Blue, Gray, and Black
LED Voltage Set Points: High Voltage - 14.82 Vdc and Above Fully Charged - 13.08 Vdc to 14.82 Vdc Charging - 12.30 Vdc to 13.08 Vdc Low Voltage - 12.30 Vdc and Below
Input: 12 Vdc from Battery
Weight: .25 lbs
Warranty: 3 Years

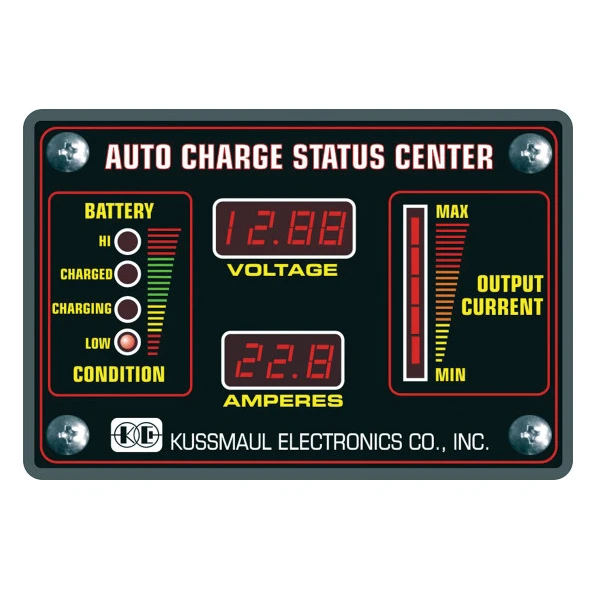

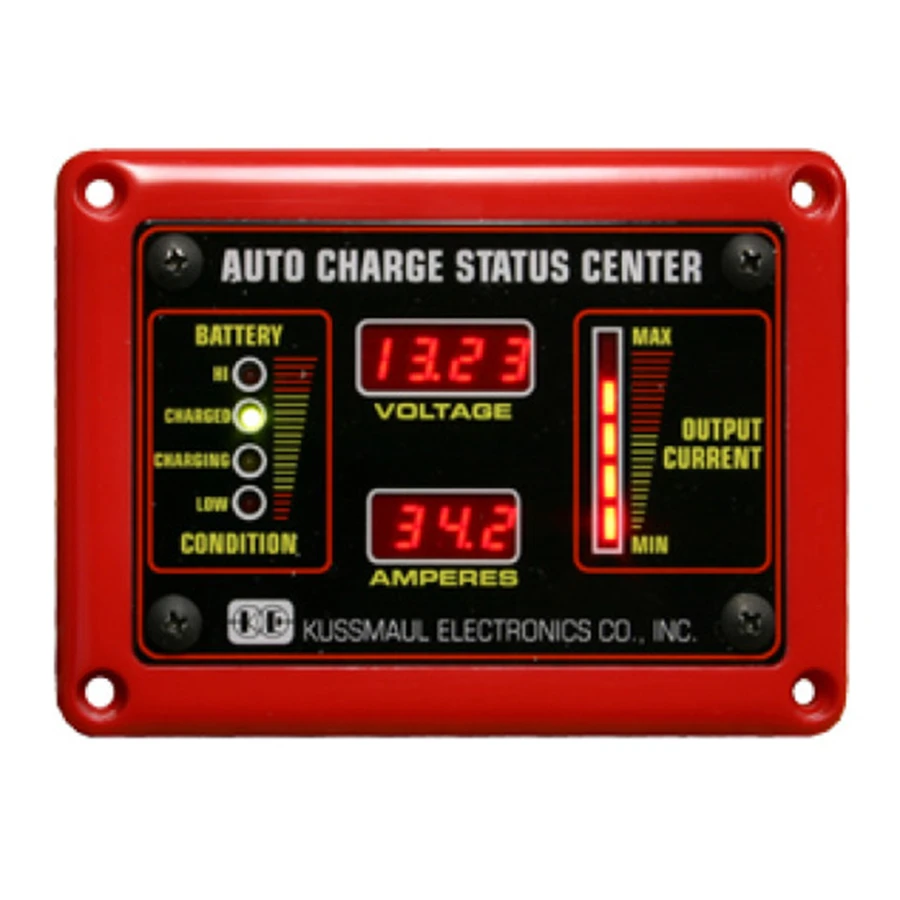

The Auto Charge Deluxe Watertight Status Center, is a remotely mounted, digital voltage and amperes display, a 5 segment bar graph display to indicate output current, and 4 LED's to show the condition of the batteries. The High and Low Battery Condition LED's blink to indicate that there may be a problem with the vehicles electrical system. This indicator is an option for the Auto Charge 1200, Auto Charge 1200 Remote, Auto Charge 40/20, Pump Plus 1200 and LPC 40.
There is a 3 1/2 digit indicator that displays battery voltage with an accuracy of 30 millivolts, and a 3-digit indicator that displays charger current with an accuracy of 100 millivolts.

The indicator is water tight and rugged. The unit is designed to be mounted on the outside of a vehicle to readily indicate the battery condition. Bezel colors are available in Red, Yellow, White, Blue, Gray, and Black, please specify when ordering. The indicator comes with a 3 year warranty.
