CMC LINESCALE 3I+
CMC LineScale 3i+
The CMC LineScale 3i+ is a high-strength, high-speed digital load cell designed for technical rescue, rope access, and advanced rigging applications.
Description:
CMC LineScale 3i+ Load Cell
The CMC LineScale 3i+ is a high-strength, high-speed digital load cell designed for technical rescue, rope access, and advanced rigging applications. Engineered for precision and durability, it provides real-time load monitoring, high-speed data capture, and in-depth analysis for critical decision-making on the fireground.
Built for Precision in Technical Rescue
The LineScale 3i+ is designed for firefighters and rescue teams operating in high-angle rescue, confined space, tower rescue, and twin tension rope systems (TTRS) where understanding forces within the system is essential.

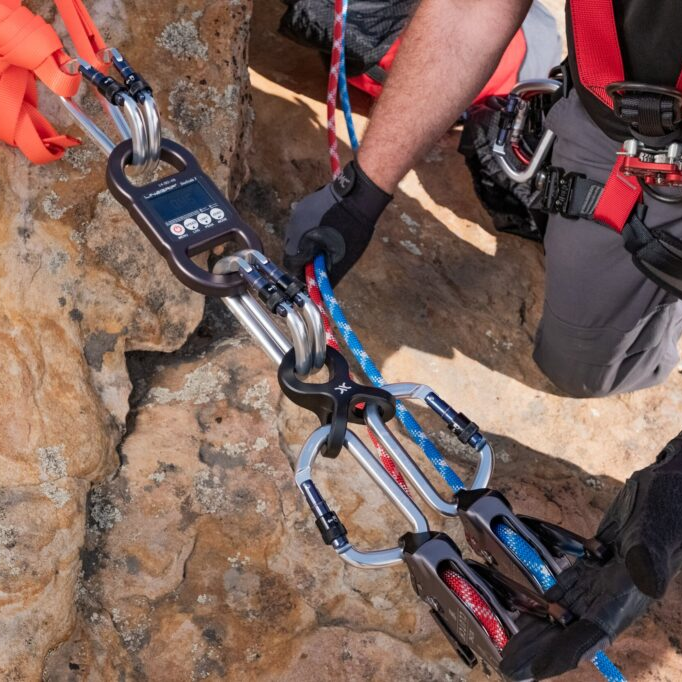

It functions as a single master point load cell, allowing teams to monitor and manage loads with confidence.
High-Speed Data Capture for Dynamic Events
• Captures up to 1,280 samples per second
• Accurately records peak loads during dynamic events
• Designed for real-time decision-making in critical operations
Strong and Certified for Life Safety Systems
• Milled from solid aluminum construction
• 90 kN minimum breaking strength (MBS)
• PPE certified for use in safety-critical applications
• Ideal for drop testing, anchor monitoring, and TTRS systems
Smart Monitoring and Data Logging
• Records up to 50 hours of continuous data
• Stores over 230 million data points
• Bluetooth connectivity for remote monitoring via mobile app
• Quick and simple USB data transfer for post-incident analysis
Enhanced Accuracy and Durability (3i+ Updates)
• Improved temperature compensation and torsion resistance
• Rounded load eyes to reduce wear on ropes and textiles
• Enhanced screen durability and scratch resistance
• Includes upgraded compact EVA protective case
• Ships with waterproof USB flash drive
Field-Ready and Fully Equipped

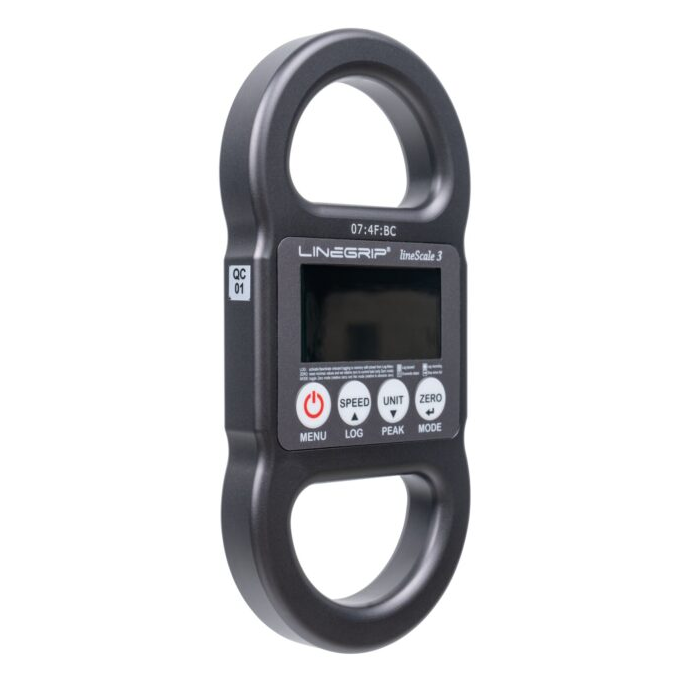

• Clear digital display for fast, readable load data
• Water-resistant construction for real-world environments
• Long battery life for extended operations
• Designed for quick deployment and transport
Included Accessories
• LineScale 3i+ Load Cell

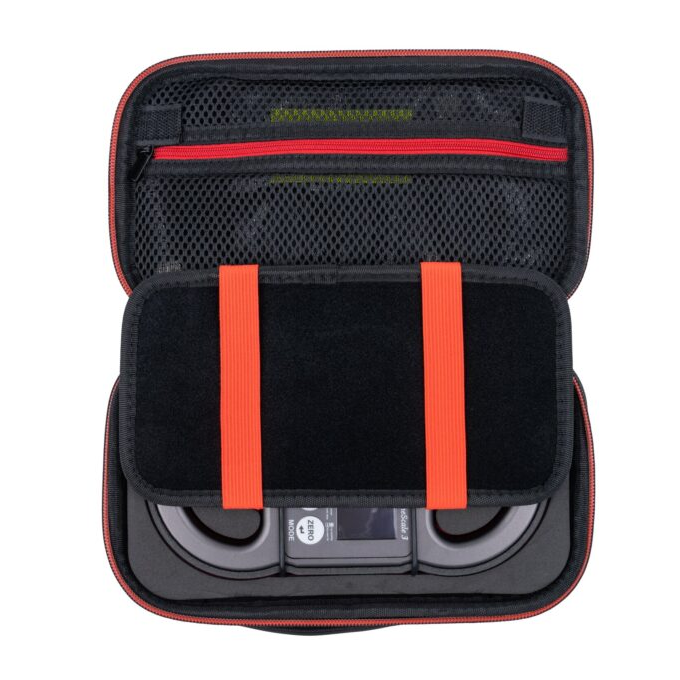

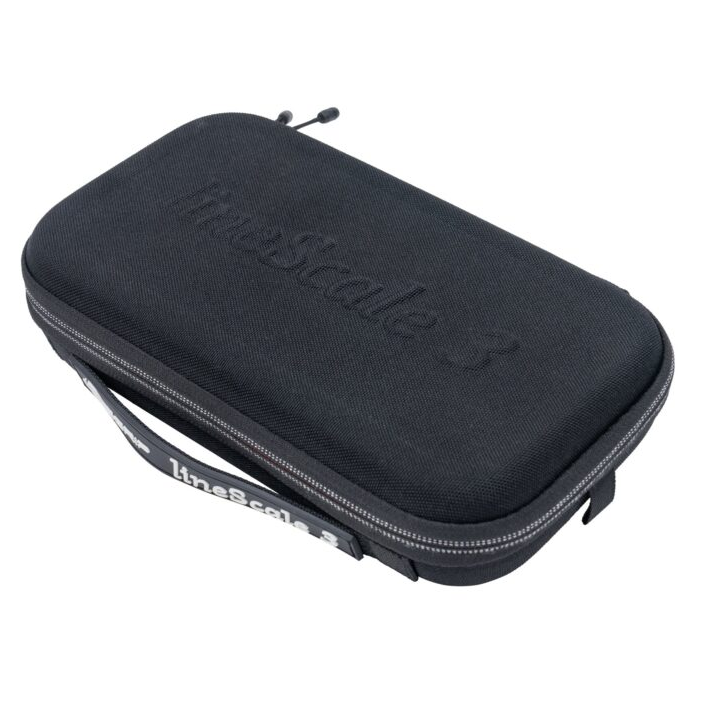

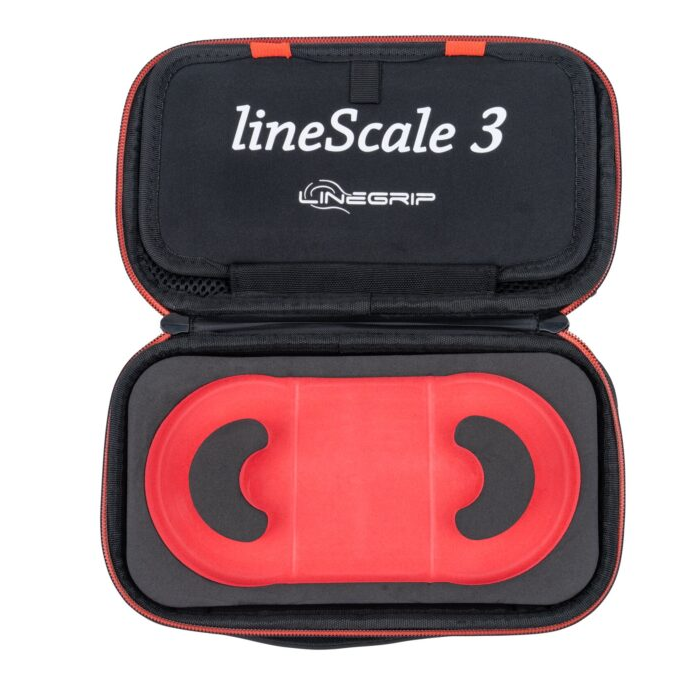

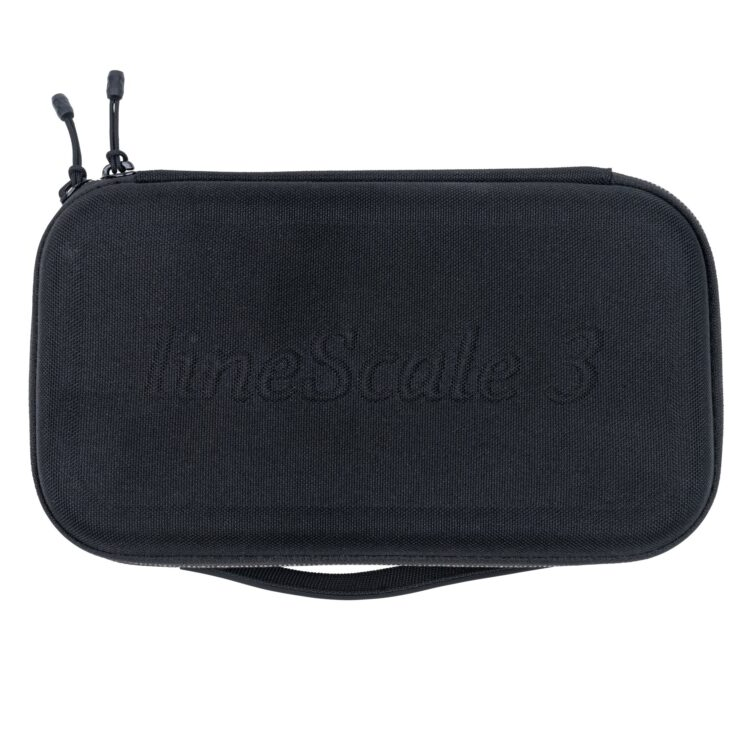

• EVA hard case with padding
• Rubber edge and screen protector
• Anti-glare screen protector
• 4GB dual USB flash drive
• Micro-USB adapter cable
• Firmware upgrade dongle
• Quick start guide and manual

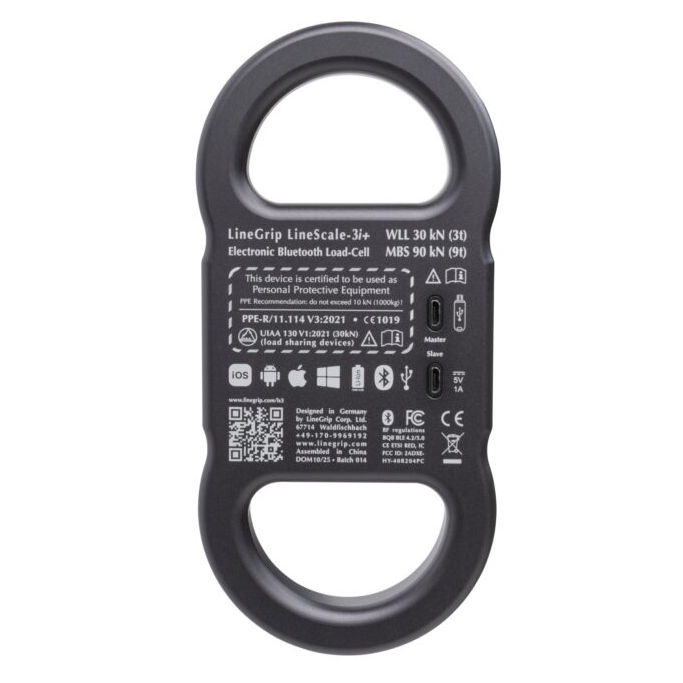

Certifications
• CE (PPE certified – Regulation (EU) 2016/425)
• PPE-R/11.114 V3:2021 compliant
• UIAA 130 V1:2021 (load-sharing devices)
