Waterous PB18-G2015B Firefighting Pump, High Pressure / Low Volume

(No reviews) Write a Review

SKU:

WATEROUS-PB18-G2015B

Shipping:

$350.00 (Fixed Shipping Cost)

SKU:

WATEROUS-PB18-G2015B

$8,544.95 - $8,653.55

Current Stock:

Quantity:

Frequently Bought Together

Waterous PB18-G2015B Firefighting Pump, High Pressure / Low Volume

$8,544.95 - $8,653.55

Choose Options

Base: * No Base (control panel & 3-gallon fuel tank shipped loose) Rail Base (control panel & 3-gallon fuel tank shipped loose)

Discharge: * 1‐1/2" ball valve female NPT 1-1/2" ball valve female NPT

Intake: * 2" female NPT

Primer: * Exhaust Primer

Description
Product Reviews
Shipping & Returns

Waterous PB18-G2015B 18HP Briggs & Stratton Fire Pump, High Pressure / Low Volume
Waterous PB18-G2015
Enhance Your Wildland/Attack Fire Suppression Capabilities

Designed for wildland/attack fire suppression, the rugged and powerful Waterous PB18-G2015 is a gear-driven centrifugal pump powered by a V-twin Briggs and Stratton 18 HP (13.4 kW) engine. The PB18-G2015 also comes with a two-year warranty and is CE marked.

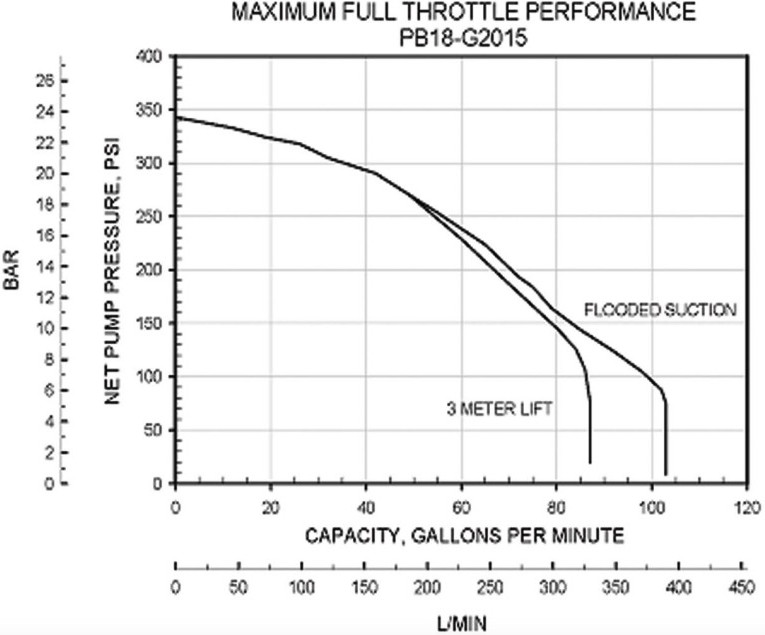

	GPM (LPM)	PSI (BAR)
Max Flow:	75 GPM (300 lpm)	190 PSI (13 bar)
Max Pressure:	20 GPM (80 lpm)	320 PSI (22 bar)

PUMP SPECIFICATIONS:
Type: Wildland - Attack

Gear Case:
Two-gear speed increaser utilizing high-strength aluminum alloy case, helical cut, hardened steel gears and anti-friction bearings

Intake:
2 inch female NPT

Discharge:
Ball valve with 1-1/2 inch female NPT (G2015B)

Console:
Operator's panel includes discharge pressure gauge, compound intake pressure gauge, low oil pressure warning light, start and stop control, speed control panel light and 12 volt outlet.

Volute Body and Head:
High-strength aluminum alloy, anodized for superior corrosion
resistance.

Impeller:
High-strength, corrosion-resistant bronze, fully-enclosed, double-hubbed to balance hydraulic thrust, mechanically balanced to eliminate vibration

Wear Rings:
Long wearing bronze. Easy to replace when required to restore original
pump efficiency.

Shaft Sleeve:
High-strength stainless steel

Shaft Seal:
Spring-loaded mechanical type

Priming:
Combination spark arresting muffler and exhaust primer, fast and easy to use. Quarter turn bronze priming valve operates with push/pull knob

Warranty:
Waterous Two-Year Limited Warranty

ENGINE SPECIFICATIONS:
Engine:
Briggs & Stratton, model 356447, Vanguard V-Twin air cooled, overhead valve (OHV) design delivers a maximum output of 18 HP (13.4 kW) @ 3600
RPM. 34.75 cu. in. (570 cc) displacement, 4-cycle, gasoline fueled, horizontal shaft

Lubrication:
Full pressure lubrication system with an automotive style oil filter. Oil fill tube with dipstick

Starter:
12-volt electric and manual recoil.

Alternator:
16 A

BASES:
Rail:
Rigid steel channels. Control panel and fuel tank shipped loose.

No Base:
Control panel and fuel tank shipped loose.

FUEL TANK:
Rail or No Base Models:
All PB18 models (except PB18-LE) with Rail or No Base will have a shipped-loose, 3-gallon (11 liter) fuel tank that meets the EPA evaporative requirement (40 CFR Part 1060)

Approximate Dimensions and Weights

	Length	Width	Height	Dry Weight	Ship Weight
Rail Base:	22-3/4" (57.8 cm)	19" (48.3 cm)	20" (50.8 cm)	120 lbs (54.4 kg)	148 lbs (67.1 kg)
No Base:	22-1/2" (57.1 cm)	19" (48.3 cm)	19" (48.3 cm)	108 lbs (49.0 kg)	136 lbs (61.7 kg)
