Elkhart Cobra EXM Monitor, 1500 GPM

No reviews yet Write a Review
$10,149.95
SKU:
ELKHART-7205
Shipping:
Free Shipping

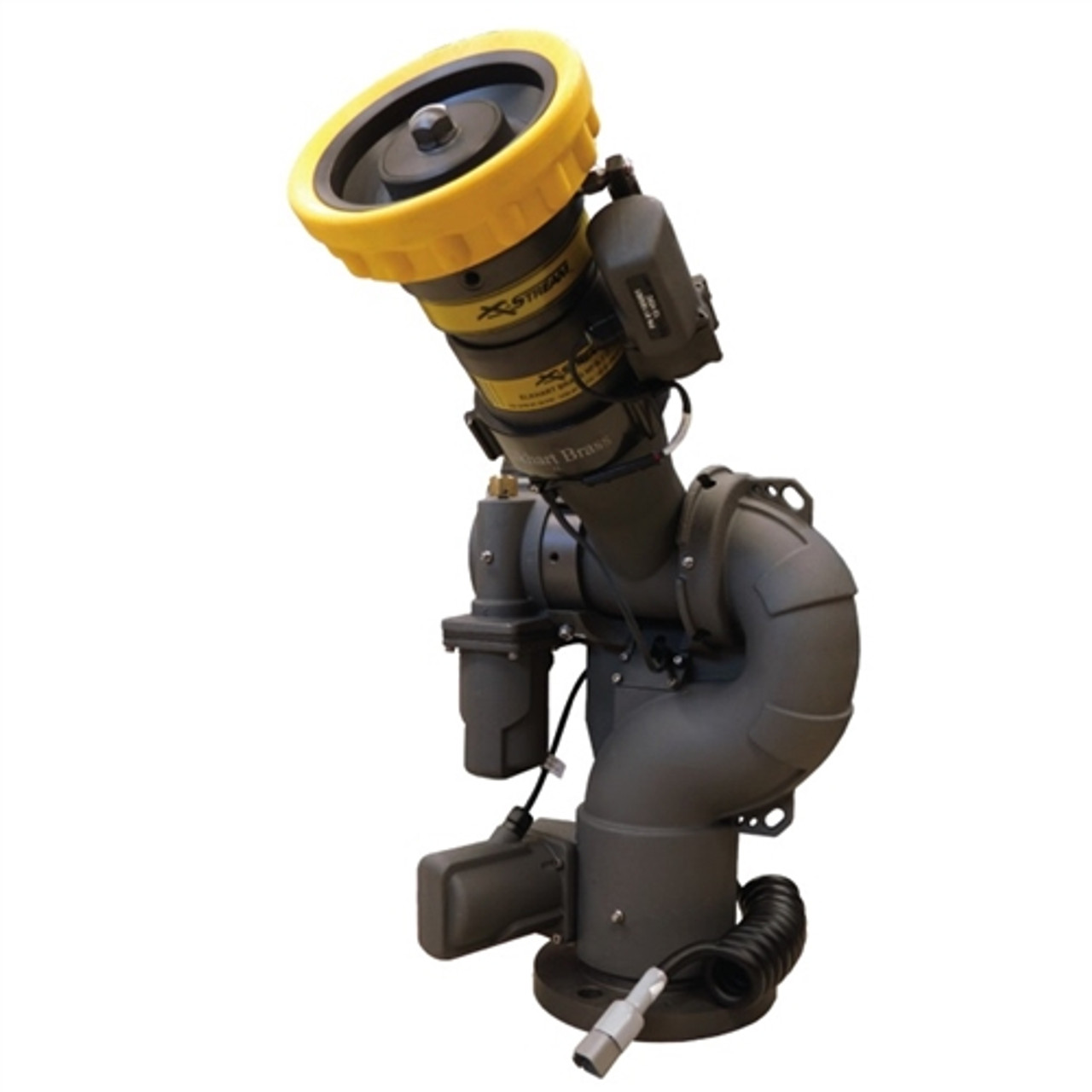

Elkhart Cobra EXM Monitor, 1500 GPM

The Elkhart Cobra EXM is an efficient, high-flow, electric remote controlled water monitor for fire apparatus, industrial pumper, and aerial vehicles.

The Elkhart Cobra EXM Monitor is an efficient, high-flow, electric remote controlled water monitor (water cannon) for fire apparatus, industrial pumper, and aerial vehicles.

The COBRA EXM monitor is specially designed to be compact providing a greatly reduced swing radius. Unique waterway swivel joints utilize stainless steel thrust rods, and needle roller thrust bearings, for unprecedented durability in a range of applications.

The COBRA EXM utilizes a cast vaned waterway to minimize large-scale turbulence. The monitor may be powered with 12 or 24 volts.

The COBRA EXM comes standard with permanent magnet DC gear motors but may be upgraded to high power motors. Both motor options are sealed to NEMA 4.

Mechanical Features:
  • Sealed to NEMA 4
  • 1500 GPM (5678 LPM) Flow
  • Axially aligned thrust bearings
  • Absolute position sensors
  • Manual travel override
  • Teflon impregnated, hard anodized aluminum alloy waterway
  • High efficiency sealed planetary gearboxes

Control Features:
  • Universal input voltage 11-32 VDC
  • Wired or wireless communication
  • CAN bus J1939 compatible
  • Single speed, two speed, or fully proportional speed control
  • Programmable 3D Travel Limits, Keep-Out Zones, Travel Speeds, Stow Position, and Oscillation
  • Integration water valve control
  • Position display

Features:
  • Compact design, reducing swing radius
  • Stainless steel thrust rods and needle roller thrust bearings
  • Cast vaned waterway minimizes large-scale turbulence
  • Discharge 2.5" NHT
  • Comes standard with permanent magnet DC gear motors (upgraded to high power motors available)
  • 12 volt
  • Both motor options are sealed to NEMA 4

Specifications:
Model: 7250
Max Flow GPM (LPM): 1500 GPM (5678 lpm)
Max Pressure: Standard Duty: 250 psi (17.2 BAR) continuous duty
Heavy Duty: 500 psi (34.5 BAR) continuous duty
Inlet: 3"-150# Flg
Outlet: 2.5" Male NHT
Travel V: -45 degrees to +120 degrees (165 degrees)
H: L175 to R175
Voltage: 11-32 VDC
Control Communication: CAN bus (j1939)
2.4 Ghz digital radio frequency (unlicensed)
Swing Radius: 6" (180 degrees), 8" (360 degrees)
Stow Height: 16.75"
Weight: 31 lbs

X-Stream Series Master Stream Nozzle:
The SM1500E is an electrically actuated master stream nozzles for use with the Cobra EXM monitor. The X-Stream series nozzles automatically adjust to maintain an effective stream and maximum reach at variable or reduced flows. Electric actuators are completely sealed and allow precise pattern control from straight stream to wide fog.

X-Stream Series Master Stream Nozzles Features:
  • 3.5" Inlet
  • 70 PSI (4.83 BAR) pressure
  • 500-1500 GPM (1893-5678 lpm)

***Please call for more options***
