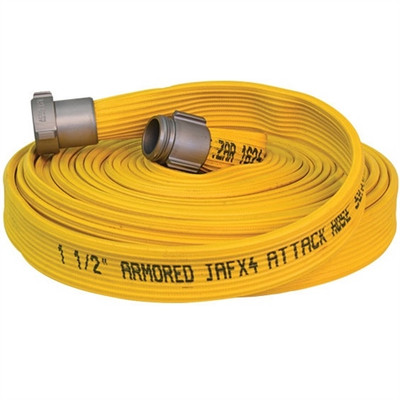

The ATI JAFX4 Fire Hose is a unique 4-layer rubber hose made with an extruded outer layer of proprietary super-tough RLH synthetic rubber compound, making this hose highly resistant to flame, heat, abrasion, and chemicals.
Features:
- Revolutionary co-extrusion technology creates a "Four Layer Hose In One Operation" without the use of glues or adhesives thereby forming a homogeneous hose which cannot delaminate
- Resists burn-through
- Super resistant to abrasion
- UL19 and Can/ULC-S511-14 Certified - 1-1/2", 1-3/4", 2", 2-1/2"
- Excellent resistance to heat, ozone, weather, most chemicals (acids, bases, salts, oils, solvents, etc.), flame, wear, tear and puncture
- Highly flexible and smooth inner lining provides excellent dilation characteristics with low friction loss and high kinking resistance
- Meets or exceeds NFPA Standard on Fire Hose (current edition)
- 10 year warranty
- Additional thread types available upon request*
| Size (in) | Bowl Size (in) | Service Test (psi) | Proof Test (psi) | Burst Test (psi) | Weight (lbs/ft) |
| 1" | 1-3/16" | 580 | 1160 | 1740 | .160 |
| 1-1/2" | 1-3/4" | 300 | 600 | 900 | .296 |
| 1-3/4" | 2-1/16" | 300 | 600 | 900 | .343 |
| 2" | 2-9/32" | 300 | 600 | 900 | .390 |
| 2-1/2" | 2-13/16" | 300 | 600 | 900 | .517 |
| 4" | 4-17/32" | 250 | 500 | 750 | .874 |
| 5" | 5-3/8" | 250 | 500 | 750 | 1.109 |
