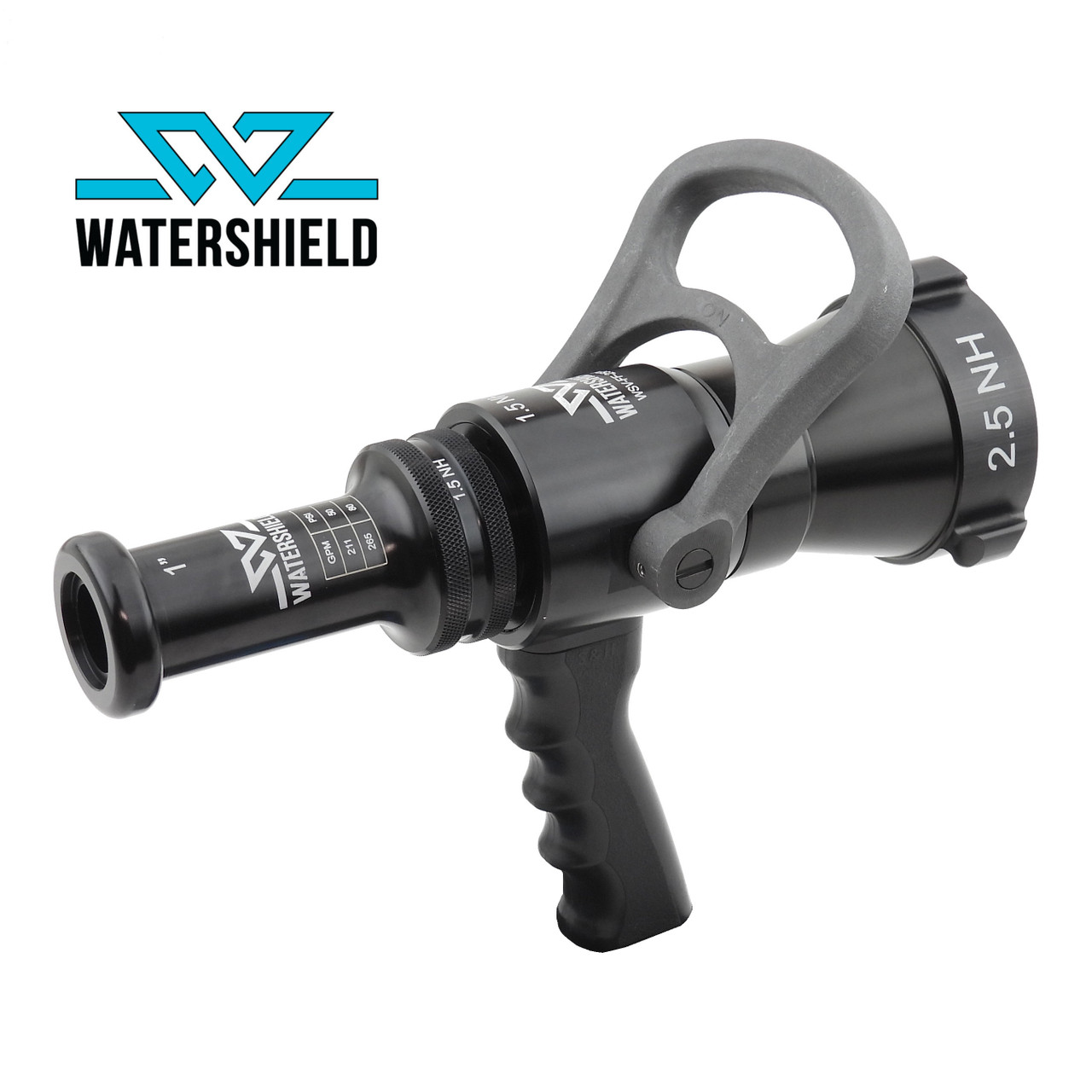

C&S Supply 2-1/2" Watershield Smooth Bore Nozzle with Pistol Grip
C&S Supply 2-1/2" Watershield Smooth Bore Nozzle with Pistol Grip
The C&S Supply 2-1/2" Watershield Smooth Bore Nozzle with Pistol Grip is designed for high-flow firefighting operations.
| SMOOTH BORE THEORETICAL FLOW DATA/ GPM | |||||||||||||||
| PSI | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | 53/64" | 7/8" | 15/16" | 1" | 1 1/16" | 1 1/8" | 1 3/16" | 1 1/4" |
| 40 | 6.5 | 11 | 18 | 27 | 48 | 73 | 107 | 130 | 143 | 166 | 189 | 212 | 239 | 265 | 295 |
| 50 | 7.5 | 13 | 20 | 31 | 54 | 82 | 119 | 144 | 160 | 186 | 211 | 237 | 267 | 300 | 329 |
| 60 | 8 | 14 | 22 | 32 | 57 | 89 | 129 | 157 | 176 | 202 | 230 | 259 | 291 | 325 | 359 |
| 80 | 9.3 | 16.6 | 25 | 37 | 66 | 103 | 149 | 182 | 203 | 233 | 265 | 299 | 336 | 375 | 415 |
| 100 | 10 | 18 | 29 | 43 | 75 | 116 | 168 | 191 | 227 | 262 | 297 | 335 | 377 | 419 | 465 |
Description:
C&S Supply 2 1/2" Smooth Bore Nozzle with Pistol Grip
The C&S Supply 2 1/2" Smooth Bore Nozzle with Pistol Grip is designed for high-flow firefighting operations where reach, penetration, and reliability are critical. Featuring a smooth bore tip and large waterway, it delivers efficient water movement with reduced friction loss for exterior attack, standpipe, and defensive operations.
Designed for High-Flow 2 1/2" Line Operations
This nozzle is commonly used on 2 1/2" hose lines where firefighters need maximum flow, reach, and stream penetration for large volume fire conditions, exterior attack, and commercial or industrial incidents.
The smooth bore design supports effective water delivery with minimal turbulence.
Smooth Bore Performance
• Standard configuration includes 1 1/8" smooth bore tip
• Optional tip sizes available: 3/8", 1/2", 5/8", 3/4", 53/64", 7/8", 15/16", 1", 1 1/8", 1 3/16", 1 1/4"
• Designed for efficient stream reach and penetration
• 1 3/8" smooth waterway supports increased flow efficiency
Stream and Shutoff Control
• Smooth bore delivers a solid, straight stream pattern
• Integrated shutoff with twist control via protective rubber bumper
• Designed for consistent flow and simple operation
Durable and Field-Ready Construction
• Constructed from hard anodized aluminum
• Stainless steel internal components for durability
• Individually tested for performance consistency
• Designed for repeated use in demanding fireground environments
Ergonomic Handling and Control
• Pistol grip and metal bail handle for improved control
• Designed for operation with gloved hands
• Full-time swivel inlet reduces hose kinks and improves handling
Connection and Compatibility
• 2 1/2" NST inlet
• Can be configured as a break-apart nozzle system depending on setup
Operating Pressure
• Designed for 50 psi working pressure (typical for smooth bore operations)
Dimensions
• Weight: 3.0 lbs
• Width: 8.0 inches
• Height: 10.0 inches
• Depth: 5.0 inches
