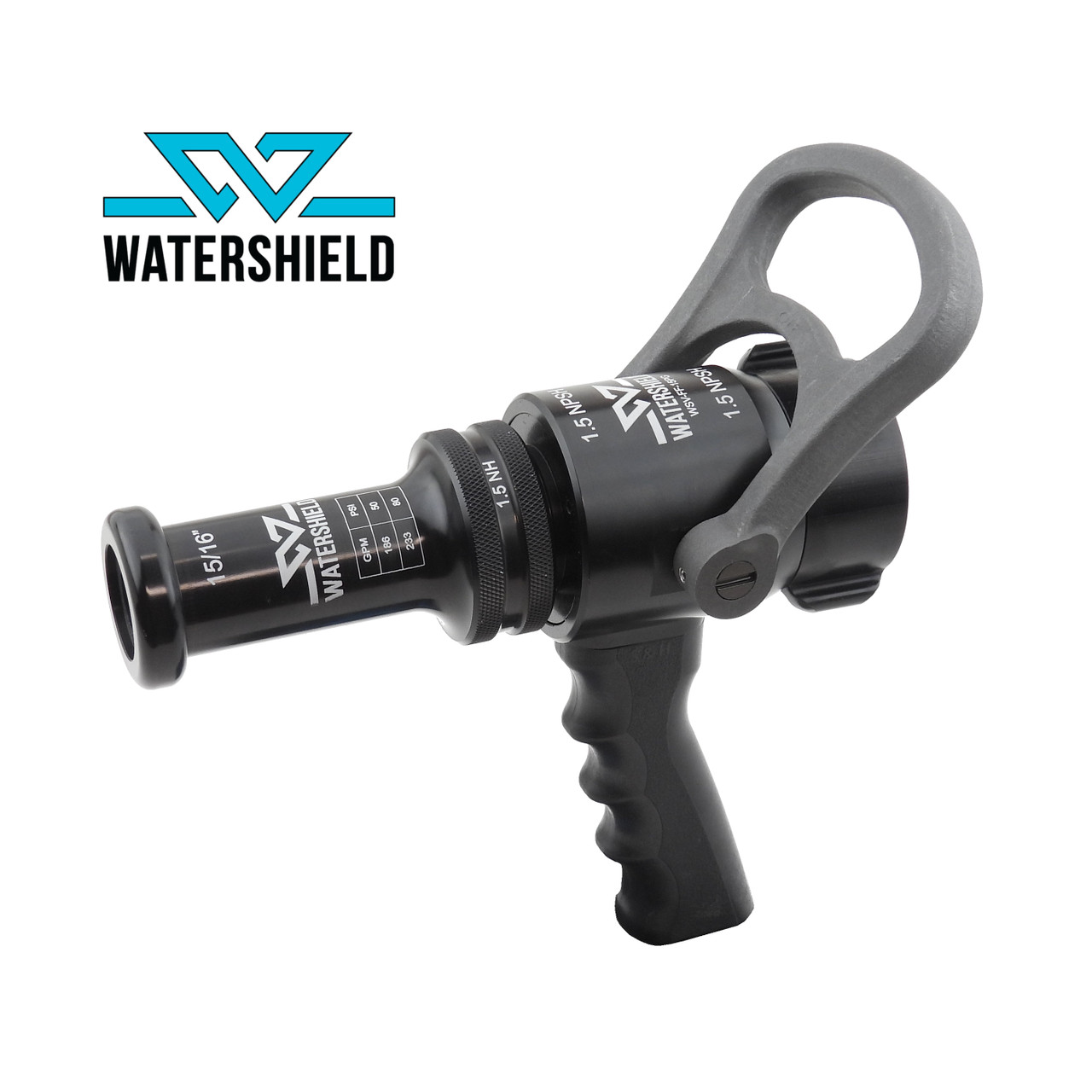

C&S Supply 1-1/2" Watershield Smooth Bore Nozzle with Pistol Grip
C&S Supply 1-1/2" Watershield Smooth Bore Nozzle with Pistol Grip
The C&S Supply 1-1/2" Watershield Smooth Bore Nozzle with Pistol Grip is designed for firefighters who need reliable flow, strong stream reach, and consistent performance.
| SMOOTH BORE THEORETICAL FLOW DATA/ GPM | |||||||||||||||
| PSI | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" | 53/64" | 7/8" | 15/16" | 1" | 1 1/16" | 1 1/8" | 1 3/16" | 1 1/4" |
| 40 | 6.5 | 11 | 18 | 27 | 48 | 73 | 107 | 130 | 143 | 166 | 189 | 212 | 239 | 265 | 295 |
| 50 | 7.5 | 13 | 20 | 31 | 54 | 82 | 119 | 144 | 160 | 186 | 211 | 237 | 267 | 300 | 329 |
| 60 | 8 | 14 | 22 | 32 | 57 | 89 | 129 | 157 | 176 | 202 | 230 | 259 | 291 | 325 | 359 |
| 80 | 9.3 | 16.6 | 25 | 37 | 66 | 103 | 149 | 182 | 203 | 233 | 265 | 299 | 336 | 375 | 415 |
| 100 | 10 | 18 | 29 | 43 | 75 | 116 | 168 | 191 | 227 | 262 | 297 | 335 | 377 | 419 | 465 |
Description:
C&S Supply 1 1/2" WaterShield Smooth Bore Nozzle with Pistol Grip
The C&S Supply 1 1/2" WaterShield Smooth Bore Nozzle with Pistol Grip is designed for firefighters who need reliable flow, strong stream reach, and consistent performance on attack lines. Featuring a smooth bore tip and large waterway, it delivers efficient water movement with reduced friction loss for interior and exterior fire attack.
Designed for 1 1/2" Attack Line Operations
This nozzle is commonly used on 1 1/2" hose lines where firefighters require solid stream penetration, reduced nozzle reaction, and dependable flow during structural firefighting operations.
The smooth bore design supports effective reach and water delivery with minimal turbulence.
Smooth Bore Performance
• Standard configuration includes 15/16" smooth bore tip
• Optional tip sizes available: 3/8", 1/2", 5/8", 3/4", 53/64", 7/8", 15/16", 1", 1 1/8", 1 3/16", 1 1/4"
• Designed for solid stream reach and penetration
• 1 3/8" smooth waterway supports efficient flow with reduced friction loss
Stream and Shutoff Control
• Smooth bore produces a solid, straight stream pattern
• Integrated twist shutoff with protective rubber bumper
• Designed for consistent flow and simple operation
Durable and Field-Ready Construction
• Constructed from hard anodized aluminum
• Stainless steel internal components for durability
• Individually tested for performance consistency
• Designed for repeated use in demanding fireground environments
Ergonomic Handling and Control
• Pistol grip and metal bail handle for improved control
• Designed for operation with gloved hands
• Full-time swivel inlet reduces hose kinks and improves handling
Connection and Compatibility
• Available in 1 1/2" NST or 1 1/2" NPSH thread options
• Can be configured as a break-apart nozzle system depending on setup
Operating Pressure
• Designed for 50 psi working pressure (typical for smooth bore operations)
Dimensions
• Weight: 3.0 lbs
• Width: 8.0 inches
• Height: 10.0 inches
• Depth: 5.0 inches
