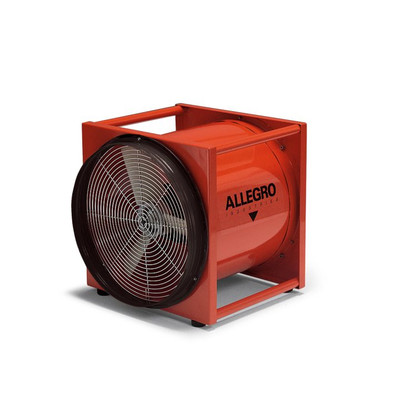

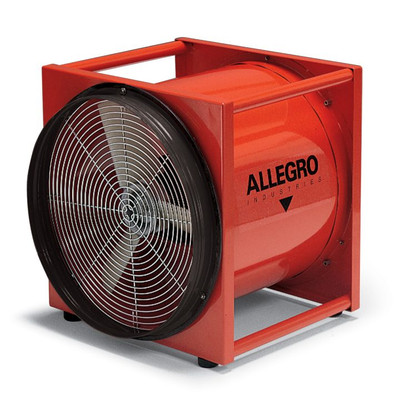

Allegro 16" Axial Explosion-Proof (EX) Metal Blower

Allegro 16" Axial Explosion-Proof (EX) Metal Blower is designed for use in applications requiring a large amount of output in a hazardous location environment.

Our 16” Axial Explosion-Proof Metal Blower is offered with a ½ hp single-phase motor and an efficient six-blade impeller fan in a rugged metal housing. Also included is a NEMA rated 115V plug to be used with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. Certified to CSA Standard C22.2 No.113.

NOTE: Explosion-proof blowers require an explosion-proof socket.

Free Air	One 90° Bend	Two 90° Bends
2900 CFM	1800 CFM	1750 CFM
67 lbs.	1/2 HP	115V-230V AC, 60 Hz

Motor:

HP	1⁄2HP
Certifications:	UL Listed, CSA Certified
Voltage/Hz	Model 9515-01: 115/230V AC, 60 Hz, Single Phase Model 9515-01S: 220V AC, 60 Hz, Single Phase
RPM	1725
Current Draw	8.2/4.1A
Cord	25’ (7.63 m) 12/3 AWG SOOW 90C 600V heavy duty
Plug	Model 9515-01: NEMA 20 Amp plug, explosion-proof rated Model 9515-01S: No plug included

Fan:

Anti-Static glass reinforced polyamide (PAGAS) six blade fan with aluminum hub
Moving fan mounted 1 5/8” (4.12 cm) from grill for safety, grill gap 5/16” (0.79 cm)

Blower Dimensions:

Length	Width	Height	Weight
18” (45.7 cm)	18” (45.7 cm)	19” (48.2 cm)	67 lbs. (30.3 kg)

Flow Rates:

Free Air	One 90° Bend	Two 90° Bends
2900 CFM (4927.13 m3/hr)	1800 CFM (3024.23 m3/hr)	2900 CFM (4927.13 m3/hr)
